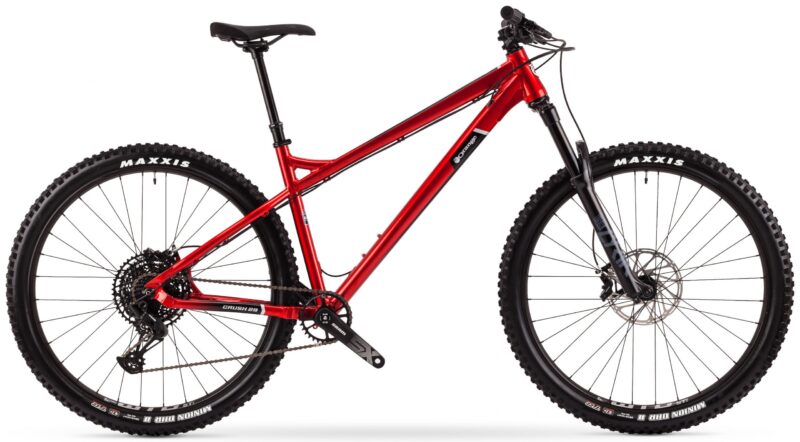

When it comes to swift but gnarly hardtails the Orange Crush line-up is the benchmark others aim for. The original aluminium hardcore hardtail gets a 2022 tune-up to keep it ahead of the game. The frame has gone through a couple of geometry adjustments and a few construction refinements. First, and most obvious, is the new one-piece chainstay yoke. It is forged for maximum toughness and provides improved lateral rigidity for pedalling performance, and leaves plenty of clearance for larger tyres, while giving the chainring plenty of space to breathe in muddy conditions.

The new frame features a tapered headtube, giving us more weld area to add strength and provide more support for the lower headset bearing. Where others skimp on the bottom bracket shell, we belive the extra strength benefits of a 73mm width in this area pays back big-time of a hardtail that gets the thrashing we know a typical Orange Crush will get.

Frame & Fork
Colour Candy Red with Black/Silver Decals
Tubeset 6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 29.
Fork RockShox Lyrik Select 140mm 29
Headset FPD 44mm / 56mm zerostack
Rear Axle Bolt Type Allen Key Head (Boost 148mm Hub)
Wheels & Tyres
Wheelset WTB ST i30 on Strange 29
Tyres Maxxis Minion DHF 2.5 3C Exo / DHR II 2.4 Exo 29
Drivetrain
Crankset SRAM SX Eagle 32t
Chain Device Not Included
Rear Mech SRAM SX Eagle 12spd
Cassette SRAM SX 1210 11-50T Eagle
Shifters SRAM SX Eagle
Bottom Bracket SRAM DUB
Chain SRAM SX Eagle
Braking
Brakes SRAM Guide T 200/180
Finishing Kit
Stem Burgtec Enduro Black 42.5mm
Handlebar RaceFace Chester 780mm M35
Grips Strange Grappler Lock-On
Seatpost KS Ragei 150/170mm Drop
Saddle WTB Silverado SL
Seat Clamp Strange Bolted
