Product Details

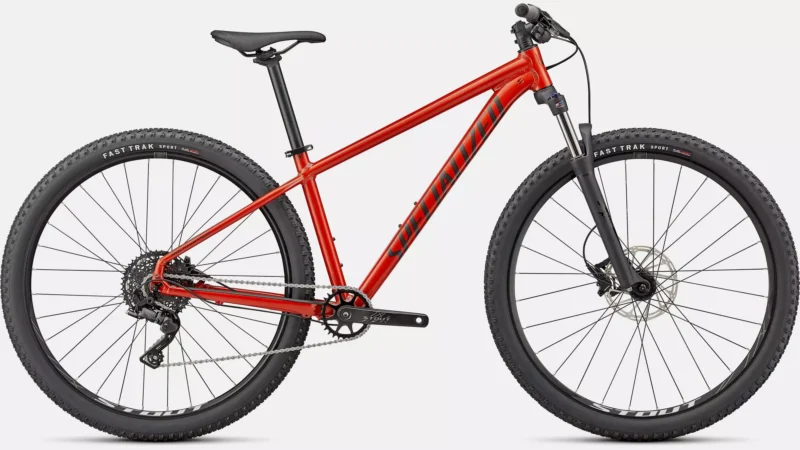

A summer blockbuster with an eye for adventure, the Rockhopper Comp lives for high action and fast-paced plot twists and features an all-new, Premium A1 Aluminum frame making its singletrack debut.
Roll the credits to discover an SR SunTour XCM fork with a custom two-way damping circuit, Stout wheelset, SRAM Level hydraulic stoppers and MicroSHIFT’s wide-range 1×9 drivetrain and you have backup provided by a supporting cast that’s all thriller and no filler, but will never leave you hanging.
-
A heart of gold, presented in our lightweight yet durable Premium A1 Aluminum, the Rockhopper’s butted aluminum frame features hydroformed top and downtubes in order to keep weight low and strength high, all while providing increased standover clearance, slick internal cable routing and dropper-post compatibility.
-
With the goal of making sure that the Rockhopper offers both the best fit and best performance for every person, no matter their measure, we’ve paired each Rockhopper frame size with the optimal wheel size. The result is a Rockhopper to fit every rider and the assurance that every Rockhopper is rolling on the best-handling wheel for its frame size.
-
Bringing our Rx Tune to Rockhopper for the very first time, the lockout-equipped SR Suntour XCM with custom Multi-Circuit damping brings size-specific travel and spring rates to the show in a performance that’s sure to impress while also ensuring consistent geometry, handling and suspension performance, regardless of frame or wheel size.
-
Beautifully beastly, SRAM Level hydraulic disc brakes pack a mean bite but deliver their power with a refined, intuitive feel to make for a package that punches way above its pay grade.
-
Keep things simple with a durable 1x MicroSHIFT drivetrain that offers plenty of range along with a clutch-equipped rear derailleur that keeps your ride quite—and your chain on.
-
Pair dead-reliable hubs from Formula with our 25-millimeter internal diameter, hookless Stout rims for a wheelset hat-trick: strong, light and durable.
Technical Specifications
Frameset
Frame
Specialized A1 premium butted alloy, zero-stack head tube, internal cable routing, 135x9mm forged dropouts, chainstay-mounted disc brake, replaceable alloy derailleur hanger, stealth rack mounts, dropper post compatible
Seat Binder
Alloy, quick release, 34.9
Suspension
Fork
SR Suntour XCM 29, 30mm Stanchions, Rx Tune, coil spring, custom Multi-Circuit damping w/lockout, QR, 90/100mm travel (size-specific), 46mm offset
Brakes
Front Brake
SRAM Level, hydraulic disc, 180/160mm
Rear Brake
SRAM Level, 2-piston caliper, hydraulic disc, 180mm
Drivetrain
Shift Levers
microSHIFT Advent, 9-speed
Rear Derailleur
microSHIFT Advent, 1×9 w/ clutch
Cassette
microSHIFT Advent, 9-speed, 11-42t
Chain
KMC X9EPT, 9-speed, anti-corrosion coating w/ reusable Missing Linkâ„¢
Crankset
Stout 1x, forged alloy
Bottom Bracket
Square-tapered, 73mm, internal bearings, 122.5mm spindle
Wheels & Tires
Rims
Stout Alloy, hookless, double-wall, 25mm inner width
Front Hub
Formula DC-20, 6-Bolt, disc, 100x9mm spacing, quick-release
Rear Hub
Formula DC-22, 6-Bolt freehub, disc, 135x9mm spacing, quick-release
Spokes
Stainless, 14g
Front Tire
Fast Trak Sport, 29×2.35″
Rear Tire
Fast Trak Sport, 29×2.35″
Inner Tubes
Presta, 40mm valve
Cockpit
Stem
3D-forged alloy, 31.8mm, 7-degree rise
Handlebars
Stout Mini Rise, alloy, 9-degree backsweep, 15mm rise, 31.8mm
Grips
Specialized MTB Grip, lock-on
Saddle
Bridge Sport, Steel rails, 155/143mm
SeatPost
Alloy, 2-bolt clamp, 30.9mm
Accessories
Pedals
SBC-54 Flat pedal
*Â Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
S | M | L | XL | XXL | |
---|---|---|---|---|---|
Crank Length | 170mm | 170mm | 175mm | 175mm | 175mm |
Handlebar Width | 720mm | 740mm | 740mm | 740mm | 740mm |
Stem Length | 40mm | 60mm | 60mm | 70mm | 70mm |
Saddle Width | 155mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 350mm | 400mm | 400mm | 400mm | 400mm |
Front-Center | 672mm | 696mm | 719mm | 745mm | 770mm |
Reach | 405mm | 425mm | 445mm | 465mm | 485mm |
Chain-Stay Length | 440mm | 440mm | 440mm | 440mm | 440mm |
Seat-Tube Length | 360mm | 400mm | 450mm | 500mm | 560mm |
Stack | 607mm | 616mm | 626mm | 640mm | 654mm |
Fork Rake/Offset | 46mm | 46mm | 46mm | 46mm | 46mm |
Bike Stand-Over Height | 732mm | 754mm | 781mm | 820mm | 853mm |
Head-Tube Length | 95mm | 95mm | 105mm | 120mm | 135mm |
Top-Tube Length (horizontal) | 608mm | 630mm | 654mm | 679mm | 586mm |
Seat-Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
Head-Tube Angle | 68.5° | 68.5° | 68.5° | 68.5° | 68.5° |
B-B Drop | 62mm | 62mm | 62mm | 62mm | 62mm |
Fork Length (full) | 505mm | 515mm | 515mm | 515mm | 515mm |
Wheelbase | 1105mm | 1128mm | 1152mm | 1178mm | 1203mm |
B-B Height | 310mm | 310mm | 310mm | 310mm | 310mm |
Trail | 97mm | 97mm | 97mm | 97mm |
